Qooder, QV3, Scooter
Qooder QV3
QV3 is

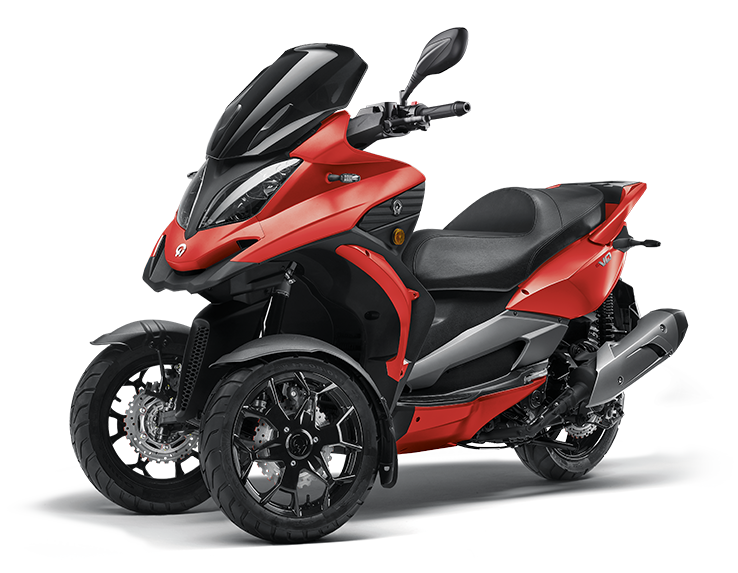

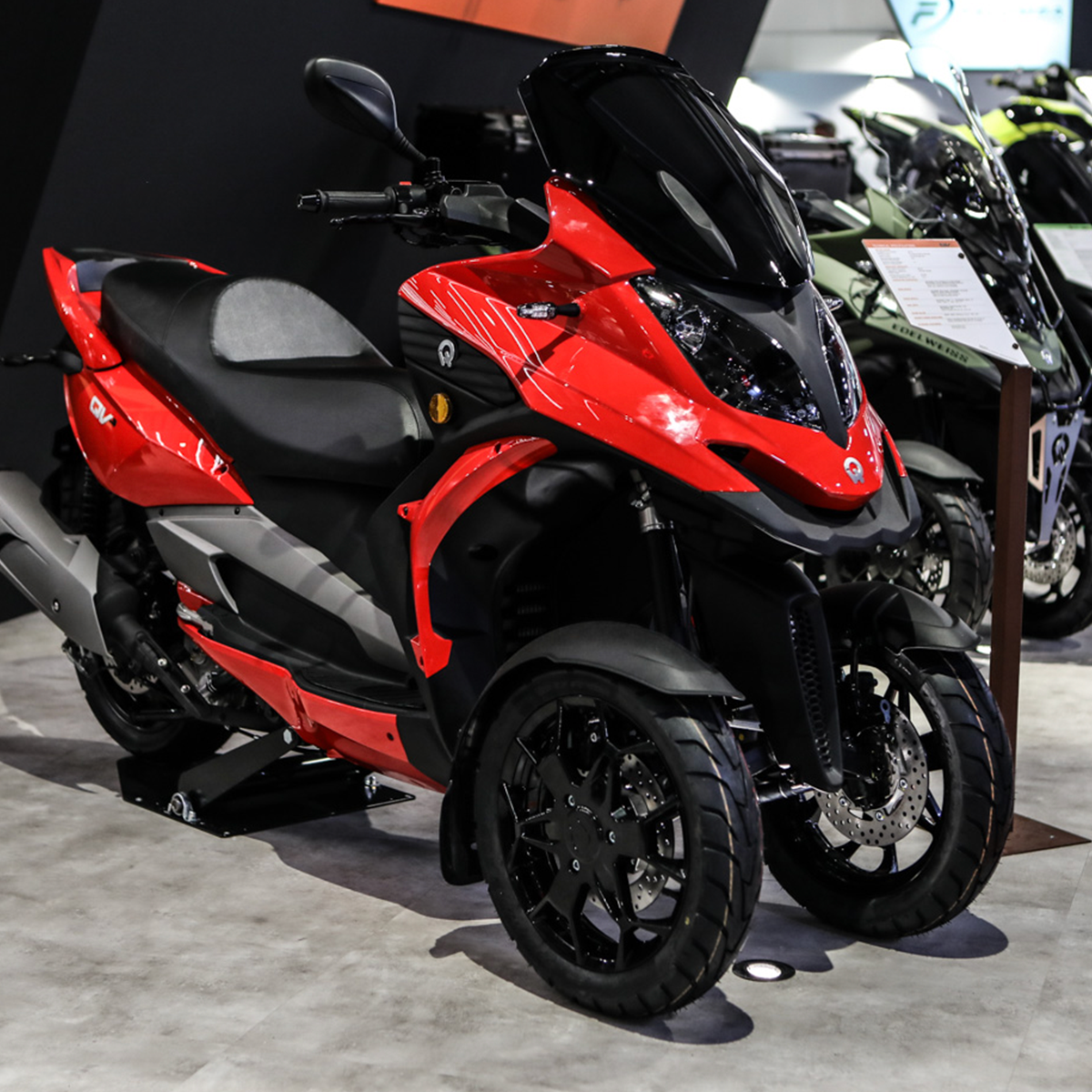

QV3. A smart and dynamic three wheeled mobility solution.
The only three wheeler with the exclusive HTSTM (Hydraulic Tilting System). Style and design with balanced shapes, a low centre of gravity, the largest wheels of its category and integral braking system, for fun and smart mobility.
The details
Type Single cylinder, 4 stroke, 4 valve
Displacement 346cc
Bore x Stroke 82×65,6mm / 3,22×2,58″
Cooling Liquid
Maximum power 21,2 kW (28,9 hp) @ 7000 rpm
Maximum torque 31,8 Nm / 23.45 ft lbs @ 5500 rpm
Fuel supply Petrol
Lubrication Trochoid pump
Ignition Electronic
Clutch Automatic dry centrifugal
Transmission Automatic CVT
Homologation Euro 4 – L5e-A
Consumption 4,1 l/100km (homologation data WMTC)
Emissions CO2 92 g/km (WMTC homologation data)
Displacement 346cc
Bore x Stroke 82×65,6mm / 3,22×2,58″
Cooling Liquid
Maximum power 21,2 kW (28,9 hp) @ 7000 rpm
Maximum torque 31,8 Nm / 23.45 ft lbs @ 5500 rpm
Fuel supply Petrol
Lubrication Trochoid pump
Ignition Electronic
Clutch Automatic dry centrifugal
Transmission Automatic CVT
Homologation Euro 4 – L5e-A
Consumption 4,1 l/100km (homologation data WMTC)
Emissions CO2 92 g/km (WMTC homologation data)
Dimensions
Height 1310 mm (1360 mm with windshield)
Length 2270 mm (2350 mm with top case)
Total width 840 mm
Wheelbase 1560 mm
Front track 550 mm
Steering angle 35°
Kerb weight (with full tank) 220 Kg
Technically permissible maximum laden mass including rider, passenger and luggage 440 Kg
Length 2270 mm (2350 mm with top case)
Total width 840 mm
Wheelbase 1560 mm
Front track 550 mm
Steering angle 35°
Kerb weight (with full tank) 220 Kg
Technically permissible maximum laden mass including rider, passenger and luggage 440 Kg
Frame
Frame Steel tubes
Front suspension HTS Hydraulic Tilting System™ (hydro-pneumatic system)
Rear suspension Twin preload adjustable hydraulic shock-absorber
Braking system Left lever and pedal: all-wheel braking – Right lever: front wheel braking
Front brakes Two ø 240 mm disks with hydraulic calipers
Rear brakes Single Ø 256 mm disc with hydraulic caliper
Tank capacity 13,2 liters
Front tyres 110/80 – 14 M/C 53P
Rear tyres 140/70 – 15 M/C 69P
Front wheels 2.75 x 14″
Rear wheels 3.75 x 15”
Front suspension HTS Hydraulic Tilting System™ (hydro-pneumatic system)
Rear suspension Twin preload adjustable hydraulic shock-absorber
Braking system Left lever and pedal: all-wheel braking – Right lever: front wheel braking
Front brakes Two ø 240 mm disks with hydraulic calipers
Rear brakes Single Ø 256 mm disc with hydraulic caliper
Tank capacity 13,2 liters
Front tyres 110/80 – 14 M/C 53P
Rear tyres 140/70 – 15 M/C 69P
Front wheels 2.75 x 14″
Rear wheels 3.75 x 15”
